全国联保厂家直销 全自动波浪线折弯成型机

产品信息

产品详细

温馨提示:本产品不支持网上订购,产品均以实际配置计价为准,网上标价均为统一虚价,给您造成的不便还请谅解!具体价格请沟通后计算配置而定。谢谢。厂家直销优质设备,免费打样!您可将产品邮寄给我们,我们将通过试验,为您选择较合适的机型。我公司提供免费为客户试机打样,欢迎到厂实地参观考察!

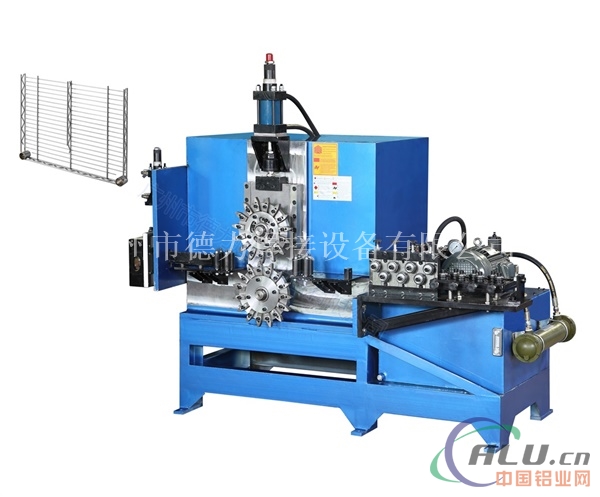

WFM-6MM系列全自动液压式金属丝波浪线成型机

WFM-6MM Series Automatic Hydraulic Type Steel Wire Wave Shape Forming Machine



整机性能特点

1.该机器主要用于将各种金属丝,金属线,如铁线,不锈钢线等,加工成“波浪形”,“锯齿形”,或者“之”及“Z”字形。

2.广泛用于置物架边,衣柜底网架花边的加工生产,及各种五金家电、照明灯饰、家居、装饰、工艺品等。

3.其采用先进微电脑及PLC控制系统,调节方便快捷。可单独控制各系统动作,生产过程中可自由调整产品加工尺寸。

4.在设定生产数量后,机器可自动完成设定的产量,减少用工数量,增加自动化程度。

5.双液压缸,齿轮传动,运行平稳,尺寸精度高,误差:每十节≤1mm。

6.根据客户需求,铁线的波高与波长可根据用户需要定制,满足各种产品需要。



Features of the Machine

1.The machine is mainly used for bending various metal wire,such as steel wire,stainless steel wire, etc.,into "wave" shape, "zigzag" shape and "Z" shape.

2.Widely used in processing and production of shelf edge,cloth cabinet bottom grid lace,and a variety of hardware appliances, lighting, decoration, arts and crafts, Home Furnishing.

3.Adopt advanced microcomputer and PLC control system,adjust conveniently and quickly.Can control the action of each part and system independently,can be free to adjust the size of each products during the production.

4.After setting the number of production,the machine can finish the output automatically,reducing the number of employees and increasing the degree of automation.

5.Double hydraulic cylinder,gear transmission,stable operation,high precision.

6.According to customer requirement,wave height and wavelength of the wire can be customized to meet the needs of various products.



主要技术参数

Main Technical Parameters

额定电压Rated Voltage

380VAC or Customized,3PH,50/60Hz

额定功率Rated Power

3.7KW

非常大加工线径Max Wire Diameter

More than 6MM

加工速度Producing Speed

More than 10M/Min

外形尺寸Overall Dimensions

180CM*150CM*120CM

设备重量Machine Weight

800KG
